Digital Infrared Thermometer Non Contact Laser IR Temperature LCD Display Gun Pyrometer Tester Aquarium Temperature Instruments Digital Non contact infrared thermometer Color LCD Digital Non-contact Pyrometer Color LCD

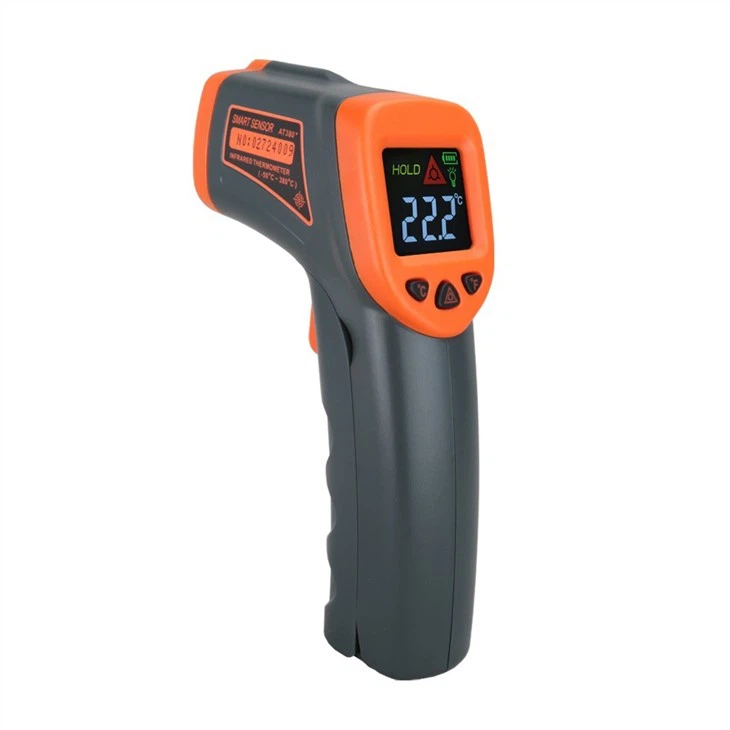

AT380 plus infrared thermometer are safely and quickly used for measuring the temperature of the object's surface without contact. The most basic design consists of a lens to focus the infrared (IR) energy on to a detector, which converts the energy to an electrical signal that can be displayed in units of temperature after being compensated for ambient temperature variation.
Merkmale
Spezifikation
Temperature range | AT380:-32 degree to 380 degree (-26 to 716 degree F ) AT380 plus :-50C380C(-58F716F) | |
Accuracy(In the condition of 23 degree ±3 degree ) | -32 degree (-26 degree F) to 0 degree (32 degree F) | |
Repeatability | 1 percent of reading or 0.1 degree | |
Response time | 500 mSec, 95 percent response | |
Spectral response | 8-14 um | |
Emissivity | pre{{0}}set 0.95 | |
Ambient operating range | 0 to 40 degree (32 degree Fto 104 degree F) | |
Relative humidity | 10-95 percent RH noncondensing,@up to 30 degree (86 degree F) | |
Storage temperature | -20 to 60 degree (-4 degree Fto 140 degree F) | |
Weight | 130g without battery | |
Dimensions | 132.892.837mm | |
Distance to Spot Size | 12:1 | |
Power Supply | 2 x AAA battery (not inlcude) | |
Package Contents | 1pc AT380 Therometer | |
Schnellstartanleitung: | ||
Schritt 1 | Press battery door clip, install battery correctly. Pull the trigger, LCD display reading battery icon. Release the trigger and the reading will hold for 7 seconds. | |
Step 2 | Locating a hot spot: To find a hot spot aim the thermometer outside the area of interest, then scan across with up and down motions until you locate the hot spot.(please turn on the laser for accurate measuring) | |
User's Guide: | ||
Instructions | Compact, rugged and easy to use. Just aim and push the button, read current surface temperature in less than a second. Safely measure surface temperature of hot,hazardous or hard-to-reach objects without contact. | |
How it works | temperature of an object, The optical detector sense the object s emitted energy with different wavelength. It is collected and focus onto a detector. The electronics system translated the information into a temperature reading which is displayed on the unit. | |
Cautions | Infrared thermometer should be protected from the following: | |
Produktdetails
Digitales berührungsloses Pyrometer mit Farb-LCD.-
FAQ
1. Wie stellen Sie sicher, dass der Preis bei gleicher Qualität wettbewerbsfähig ist?
1). Eigene Werksmontagelinien
2). Rohstoffbeschaffung aus erster Hand
3). Mehr als 10 Jahre Erfahrung in der Herstellung
2. Wie steht Ihr Unternehmen zur Qualitätskontrolle?
Unser QC-Team führt vor dem Versand eine strenge Qualitätskontrolle durch, um die beste Qualität zu gewährleisten.
3. Kann ich Muster anfordern, bevor ich eine Bestellung aufgebe?
Ja, wir begrüßen eine Musterbestellung, um die Qualität zu testen und zu überprüfen. Mischproben sind zulässig
4. What's the standard MOQ?
Muster zum Testen verfügbar Großhandelsbestellung: 100 Stück OEM-Bestellung: 1000 Stück - 5000 Stück
Beliebte label: digitales berührungsloses Pyrometer Farb-LCD, China, Lieferanten, Hersteller, Fabrik, kundenspezifisch, Großhandel, am besten, niedriger Preis, auf Lager, Kaufrabatt
